Kondo GE-10 phono stage
De ultieme phono-stage van Kondo. Alle kennis en kunde van Kondo is verwerkt in deze phono stage. Hij is zo ontworpen dat hij perfect combineert met de G-1000i voorversterker om zo het hart van je analoge playback te vormen.
Extra omschrijving
Features
- Equalizer circuit is CR type
- Separated Chassis and Fully Independent Power Supply
- Isolating the ripple filter capacitors and decoupling capacitors
- Large scale shunt type filament power supply circuit
- Power supply circuits are independent for best channel separation
- Adopt quality parts such as SSW (silk silver wire), silver foil capacitors, original power transformer and copper chassis.
PHONO equalizer unit
Equalizer circuit is CR type so that most natural sound texture is obtained.
1st stage is cascode circuit, then the equalizer is followed by a cathode follower. This arrangement reaches low output impedance and ensures natural sound with no coloring.

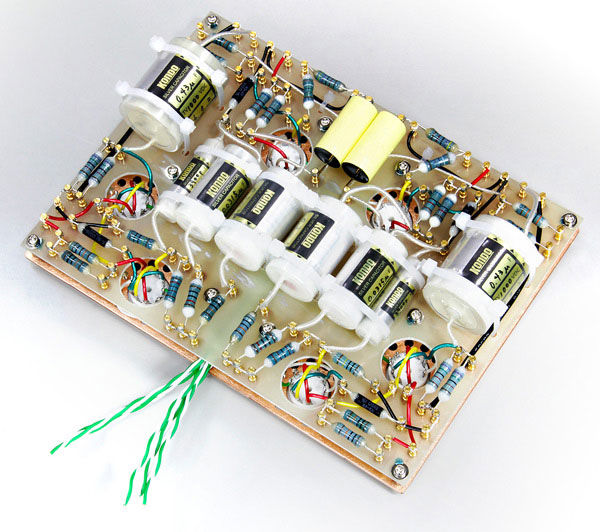

Modularization of a phono amplifier section achieve shortness signal paths and the merit of hand wiring. Through it, 6 pcs of Vacuum tubes and large silver signal capacitors can be mounted tightly into the module.
Moreover, high purity signal loop are formed by placing 4 decoupling capacitors around the module. Also taking consideration that a solid-state pre-amplifier may be connected, GE-10 is possible to load with input impedance as low as 20kΩ.Power supply, the shunt heater circuit
Rectification tunes is 6CA4. The power transformer and chokes are arranged so that minimum vibration is obtained. 3 kinds of decoupling capacitors are selected for well balance of tonal characteristics. Power supply is strengthened by clearly separating the ripple filter capacitors and decoupling capacitors.
Combining capacitor groups and a shunt type DC6.3V heater power supply circuit, ripples at power line is highly eliminated and heater voltage is regulated within ±5%.Loading impedance and low cut filter
After connecting to a preamplifier and select the matching value (3 values selectable) at GE-10's output loading impedance, a 20kΩ resultant impedance is preset. The output capacitor of GE-10 and this 20kΩ makes a low cut filter with no negative effect to sound quality. This filter reduce a subsonic moderately and helps keep the sound clean.
Ultra-high-quality parts
Audio Note original silver foil capacitors, silver lead resistors, SSW wiring material, copper main chassis, original electrolytic capacitors, original RCA Jacks, original power transformers, chokes and a lot. Other parts such as market capacitors and resistors are selected carefully for each specific positions.
Specifications
Product Stereo CR type PHONO equalizer amplifier Model GE-10 i RIAA Declination ±0.5dB (30Hz-20kHz, Excluding LCF) Gain 38dB Input / Impedance 2pairs (RCA, unbalanced) / 47kΩ Output 1pair (RCA, unbalanced, over 20 kΩ load) Noise less than 1.5mV Vacuum tube E88CC x2, 6072 x4, 6CA4 x2 Power consumption 46W Dimension Main unit 320mm(W) 160mm(H) 414mm(D)
Power supply unit 320mm(W) 160mm(H) 414mm(D)
(excluding protrusions)Weight Main unit 15kg
Power supply unit 20kg
