Krell FPB300CX

Type:

Full Power Balanced Stereo Amplifier

Output Power Each Channel Driven:

300W (8Ω)
600W (4Ω)
1200W (2Ω)

Output Voltage:

138V (Peak to Peak)
49V (RMS)

Frequency Response:

20Hz to 20kHz, +0 -0.05dB
0.1Hz to 240kHz, +0 -3dB

S / N Ratio:

113dB (“A” weighted)

Gain:

26.4dB

Total Harmonic Distortion (All Balanced, Unweighted):

0.03% (1kHz)
0.16% (20kHz)

Input Impedance:

100kΩ

Input Sensitivity:

2.34V rms

Inputs:

1 pair balanced via XLR connectors
1 pair CAST via 4-pin bayonet connectors

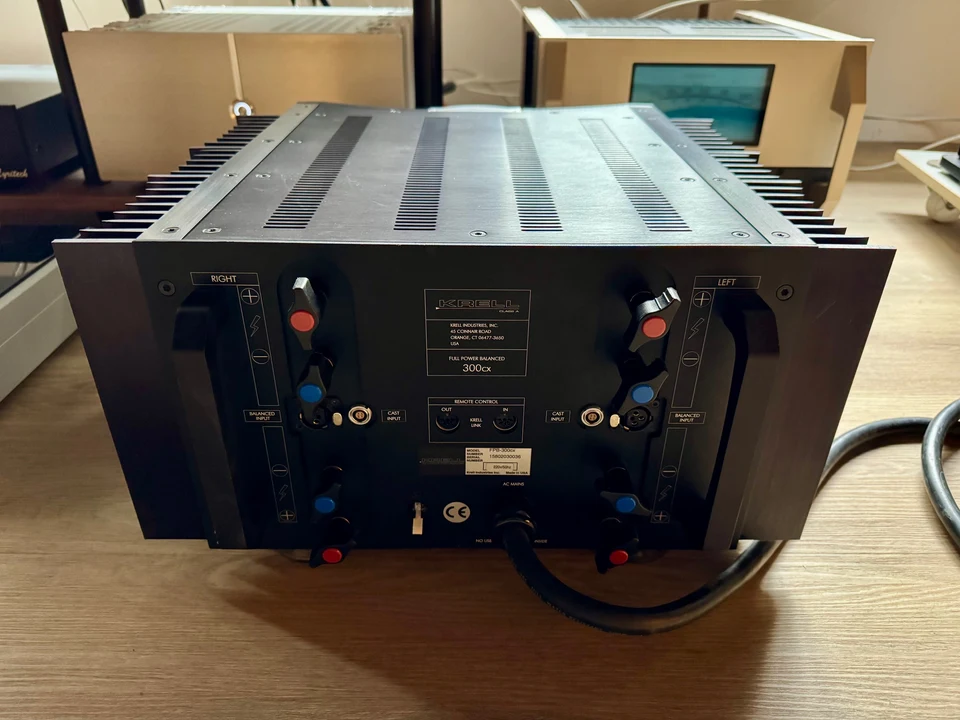

Outputs Speaker Binding Posts:

4 pair (Upper left, Lower left, Upper right, Lower right)

Optional:

Remote Control

Power Consumption:

60W (Stand-by)
175W (Idle)
1700W (Max.)

Dimensions (W x H x D):

483 x 262 x 423mm

Weight:

48.6kg (Shipping)
40.9kg (Net)
