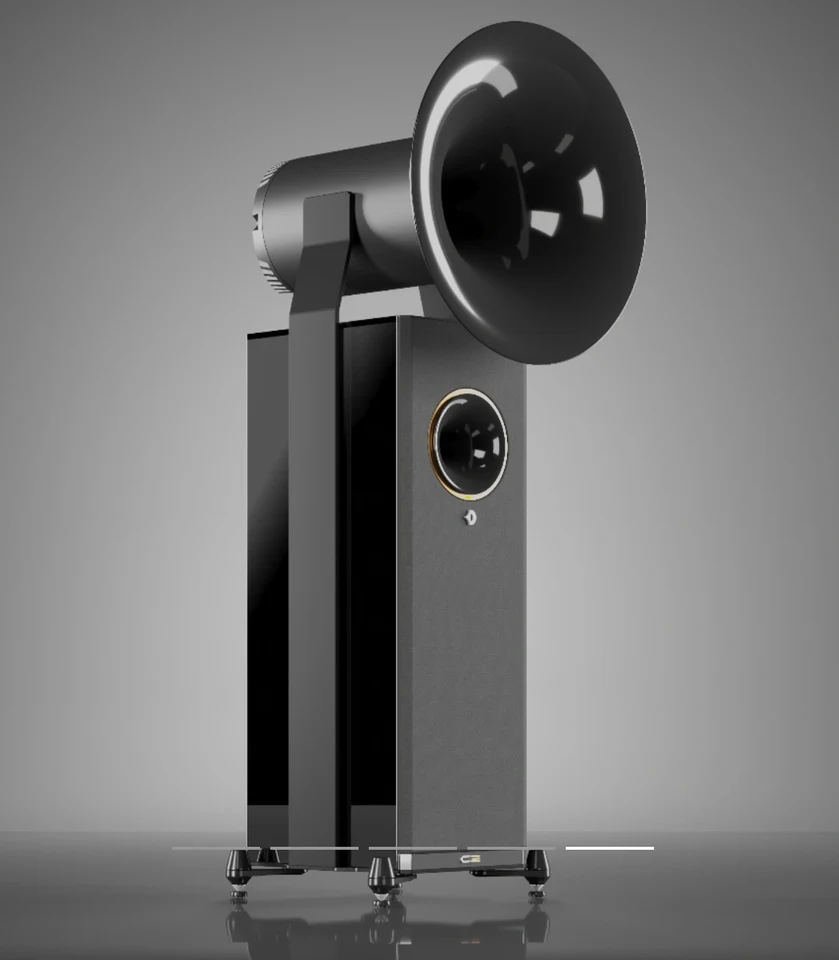

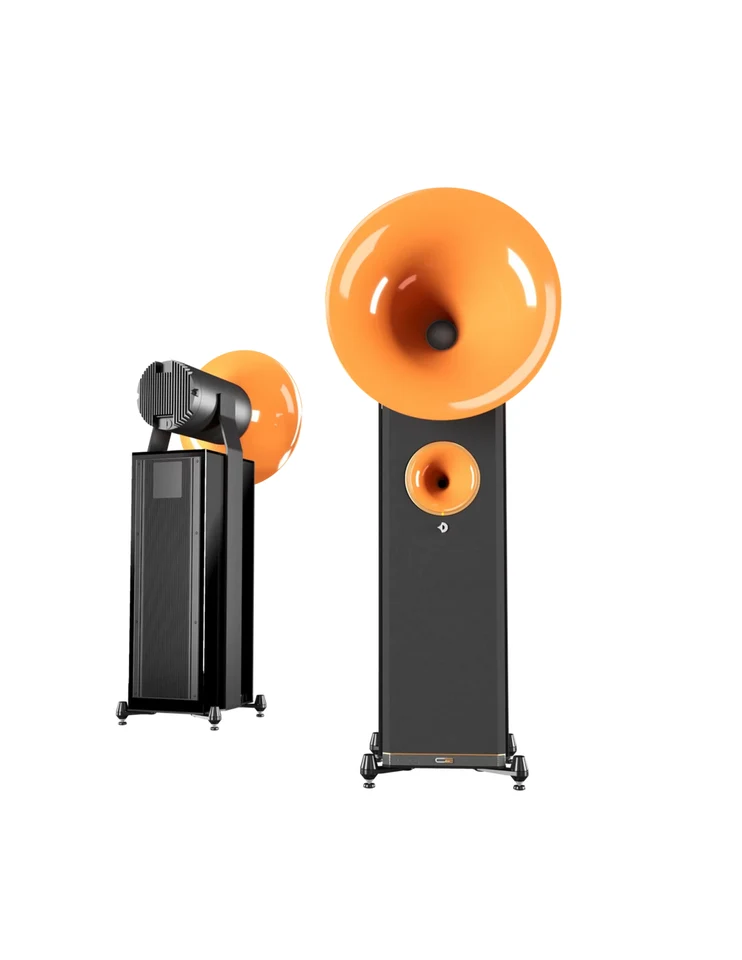

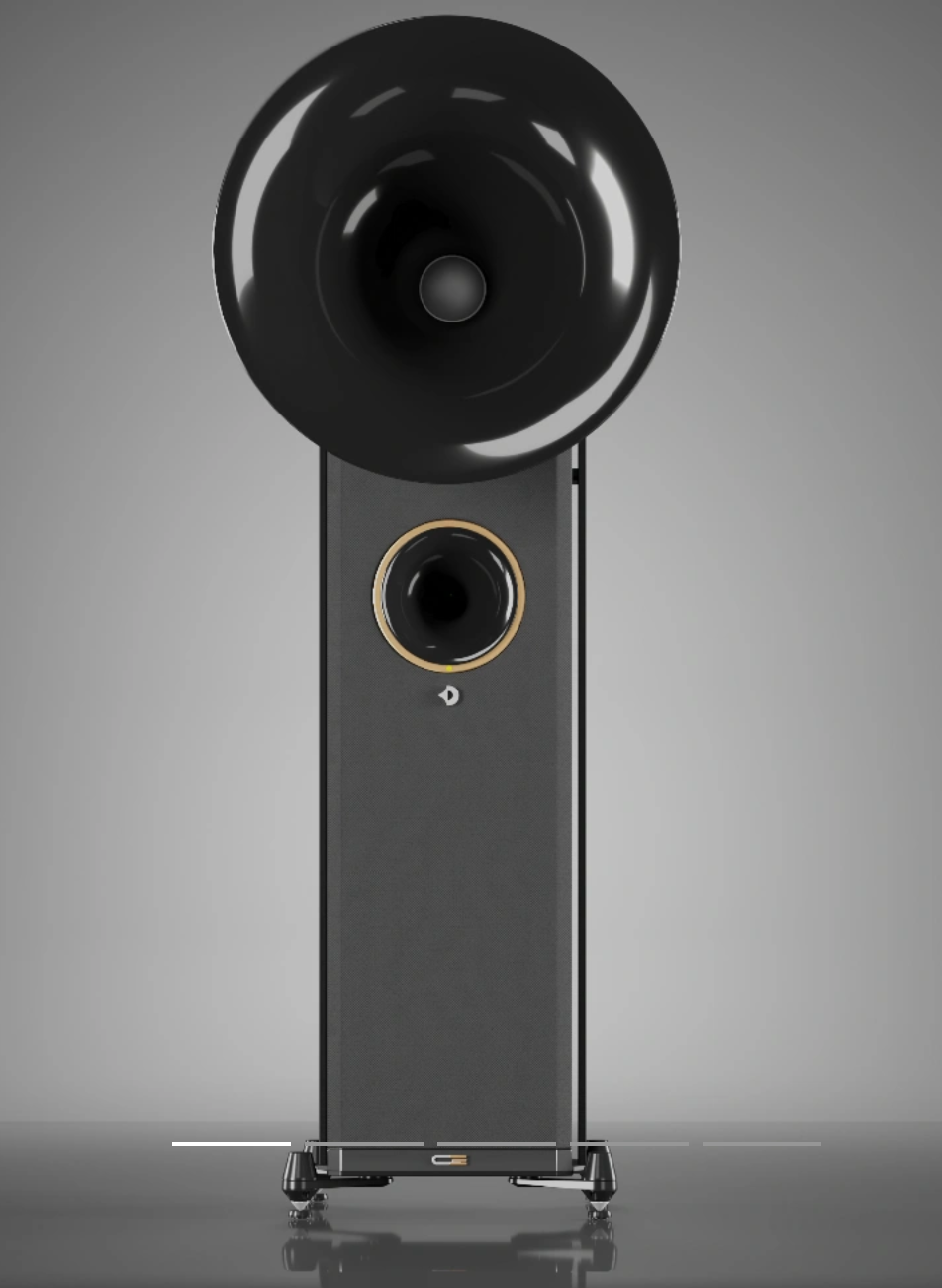

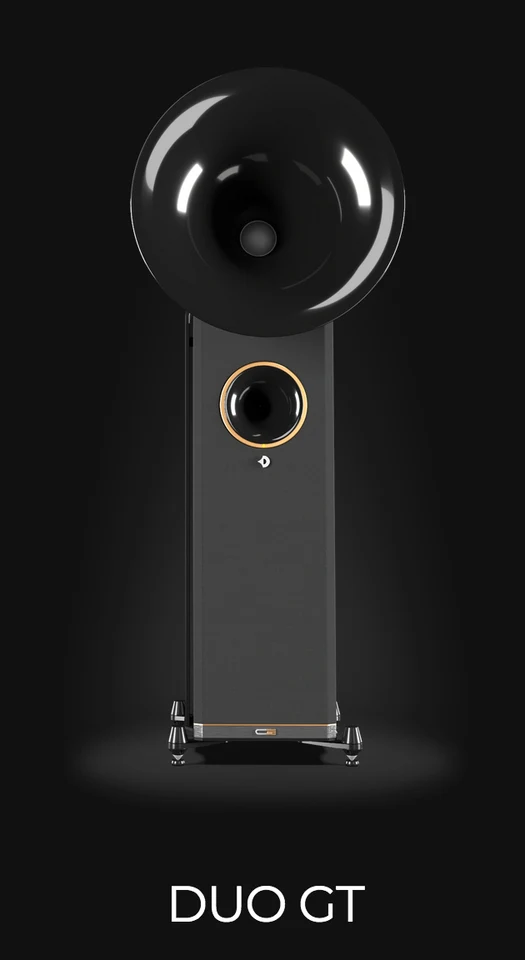

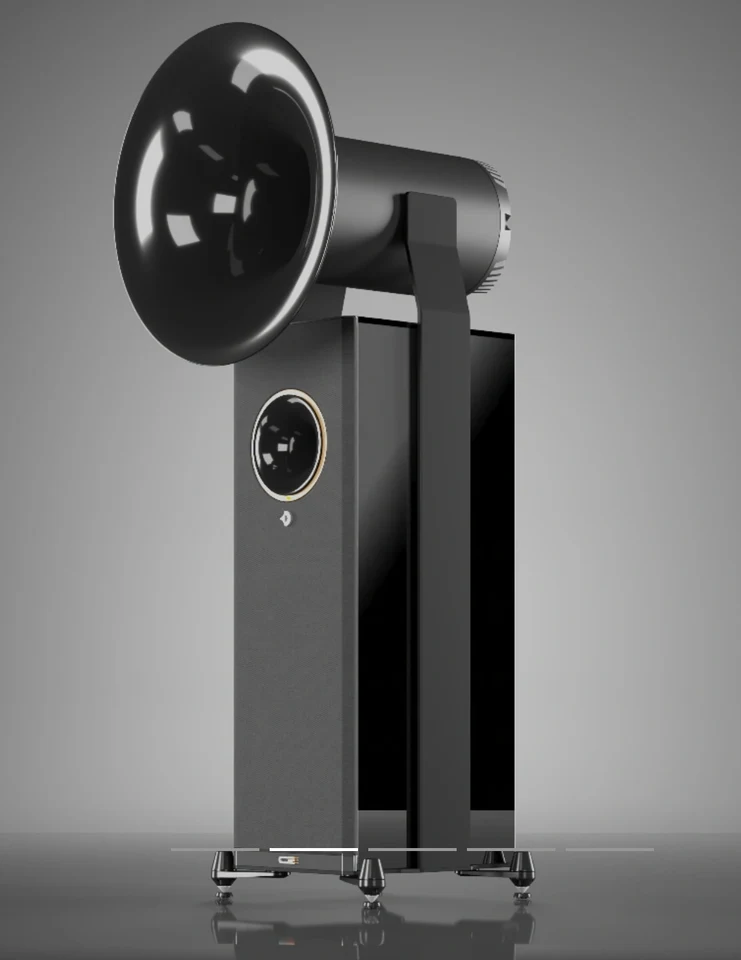

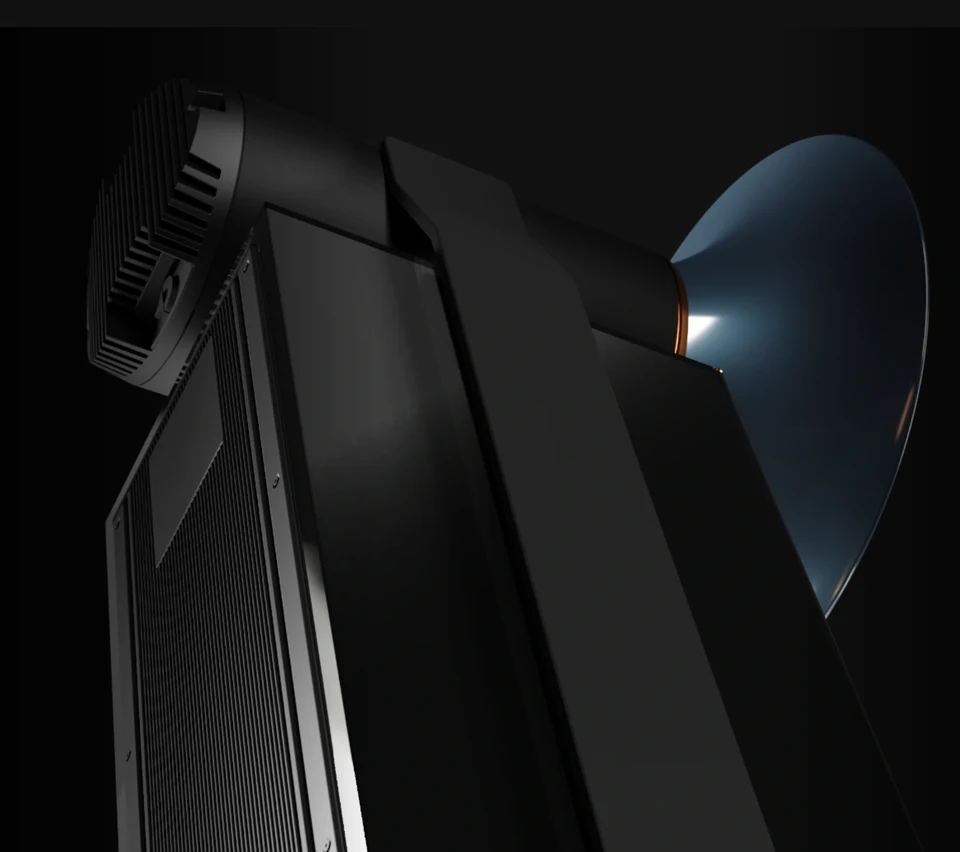

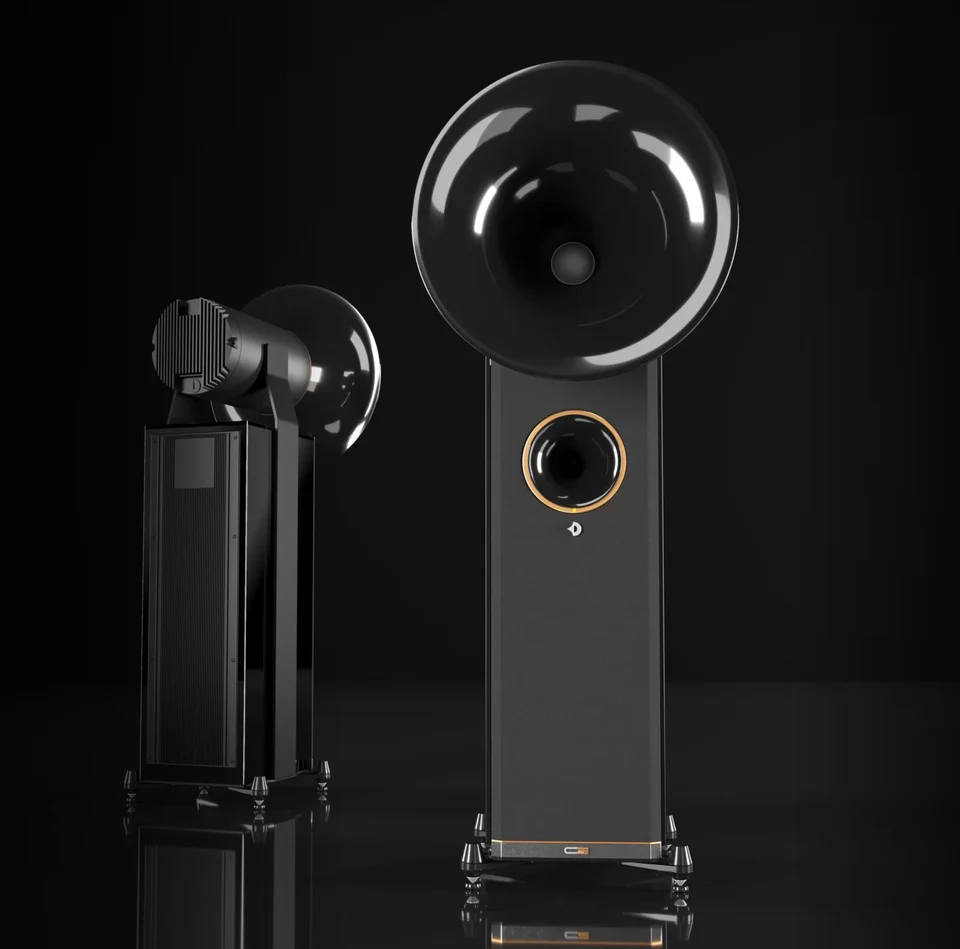

De Avantgarde Duo GT is de ultieme Duo luidspreker van Avantgarde op dit moment. Hij gaat vele malen verder dan de oude Duo XD. Voorzien van twee nieuwe 30cm woofers, nieuwe midrange en een nieuwe tweeter. De Duo GT beste Duo die Avantgarde ooit gemaakt heeft!

Technische specificaties

System data

Frequency range satellite 170-28,000 Hz

Frequency range Subwoofer 18-350 Hz

Power handling 100 Watt

Sensitivity (1 Watt/1 m) > 107 dB

Crossover frequencies 170/3,500 Hz

Nominal impedance 18 Ohm

Recommended amplifier power > 10 Watt

Recommended room size > 20 sqm

Coplanar driver alignment yes

OmegaDrive yes

AirGate yes

NatureCap incl. PolarizationPlus circuitry yes

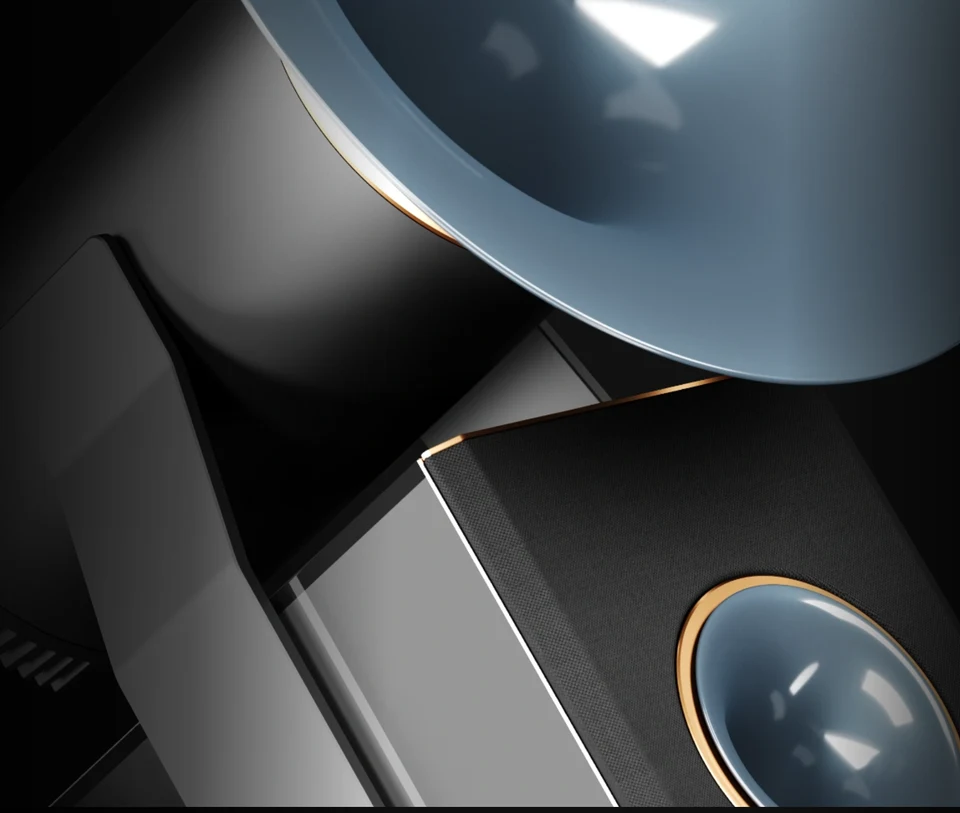

Horn

Horn type spherical horn

Horn aperture angle 180 Degrees

Horn diameter midrange 670 mm

Horn diameter tweeter 200 mm

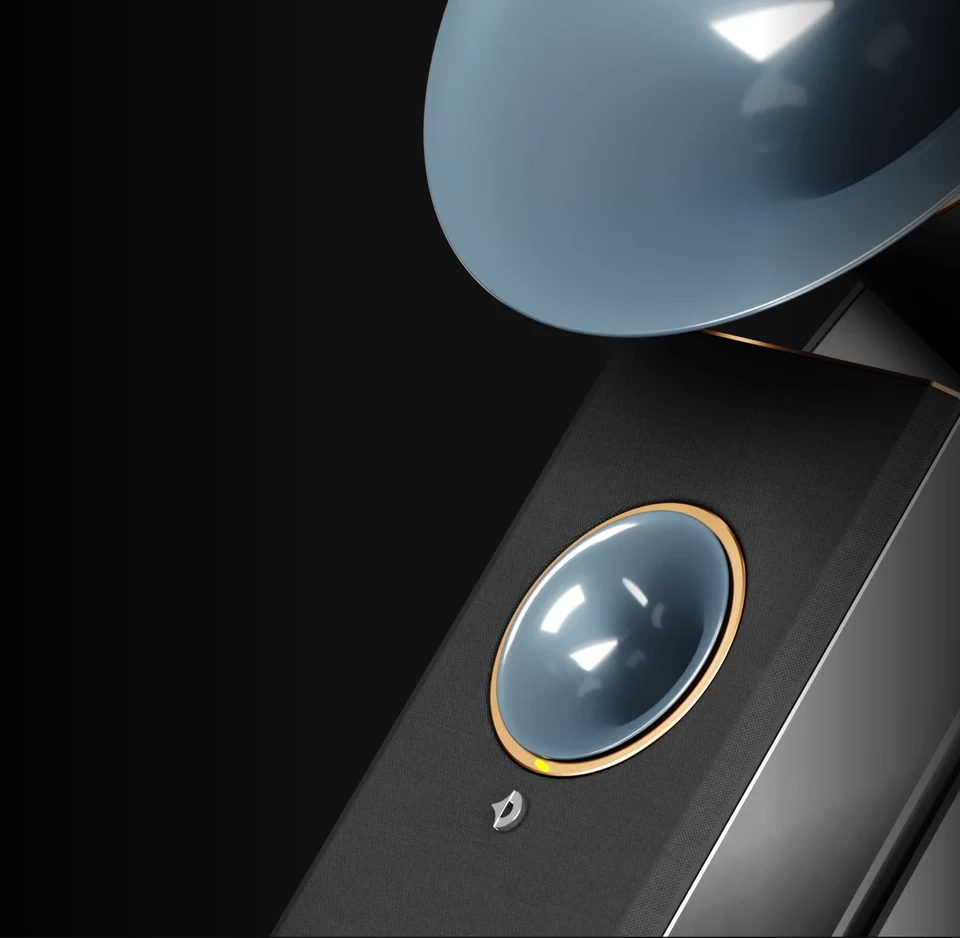

Horn drivers

Diameter midrange 170 mm / 7 inches

Diameter tweeter 25 mm / 1 inch

Bass driver

Driver size 300 mm / 12 inches

Number of drivers 2x XB12

Voice coil diameter 153 mm

Flux density 1.15 Tesla / 480 mm

Pole plate low carbon steel

Membrane material Paper/carbon fiber compound

Bass amplifier

Output power (RMS) 1x 1000 Watt

Digital crossover DSP

Equalizer 8 Band EQ

Digital room adjustment yes

Inputs 1x SPKR + 1x XLR

iTron electronics

iTRON voltage/current converter technology patented

Fully balanced circuit yes

Single-ended circuit yes

Zero Feedback yes

Without negative feedback yes

Power 2 x 100 Watt

Modular structure

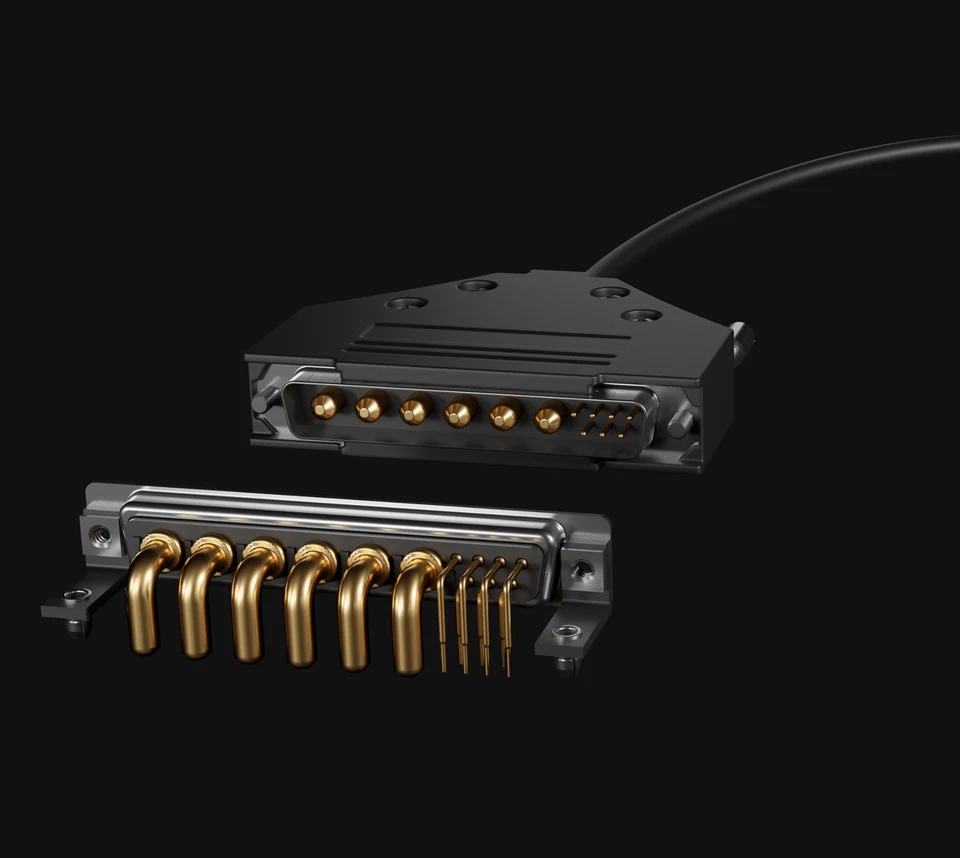

High Performance Multi Contact Connector yes

Semi-active version yes

Fully active version with iTRON amplifier yes

Dimensions/weight

Dimensions width 670 mm

Dimensions depth 696 mm

Dimensions height (+/- 15 mm) 1,732 mm

Weight 108.5 kg

Persoonlijk advies in Doetinchem. Beschikbaarheid bevestigen we bij je aanvraag.
